1500w Power Solution Integrated Metal enclosure Outdoor integrated
cabinet p65 Ip55
1. Technical Data Sheet
1.1 Structure
Internal Dimension(H*W*D) :Standard 1427 *650*650mm or any
customized size
External Dimension(H*W*D) : Standard 1650*750*750mm or any
customized size
1.2 Material: Materials are Galvanized steel with 45mm thickness EPS insulation
1.3 Layout : one compartment equipment cabinet+one compartment
1.4 Door : one door with special lock for outdoor cabinet (support padlock)
1.5 Cable enter method :Bottom φ50*5 or customer requirement.
1.6 Temperature Control Cooling :1500w 220VAC air conditioner
1.7 way of communication:RS485
1.8 Power supply system
1.9 working temperature:-40℃~+55℃
2. Available dimension and material
Width available:600mm,650mm,700mm,750mm,800mm,850mm,900mm or any customized size
Depth available:600mm,650mm,700mm,750mm,800mm,850mm,900mm,950mm,1000mm or any
customized size
Internal capacity: 18U,22U ,27U,30U,32U,35U,37U,40U,42U etc (based on customers
requirements)
Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel
etc(based on customers requirements)
Accessory List(options)
No. | Item | Specifications |
1 | Fan | DC48V, START WORK AT 35°C |
2 | Power Distribution (PDU) | GRADE B LIGHTNING PROOF
AC INPUT: 63A/2P *1; AC OUTPUT: 16A/1P*4;
DC OUTPUT: 16A/1P*4 or customer requirement |
3 | Environment Monitoring Unit | 48VDCCommunication port: RS485, TCP/IP, SNMP optional |
4 | Door Sensor | Monitor door open status inside cabinet and provide real time
alarm. |
5 | Water Sensor | Monitor water status inside cabinet and provide real time alarm. |
6 | Tilt & Shock Sensor | Monitor shock status inside cabinet and provide real time alarm. |
7 | Temperature & Humidity Sensor | Monitor temperature and humidity inside cabinet and provide real
time alarm. |
8 | Smoke Sensor | Monitor smoke status inside cabinet and provide real time alarm. |
9 | Ground Bar | Resistance value: 0.021Ω |
10 | Built-in power supply | 150A/200A/300A |
11 | Packaging | Wooden case/Export pallet |
Cooling System(Optional) |
No. | Item | Specifications |
1 | Air Conditioner | AC220V/DC48V, Cooling capacity 300w, 400w, 600w, 800w, 1000w,
1200w, 1500w, 2000w, 2500w, 3000w, 3500w, 4000w; AC380V,5000w |
2 | Heat Exchanger | AC220V/DC48V, Heat transfer 80w/k, 100w/k, 120w/k, 150w/k, 200w/k |
3 | Thermoelectric Cooler (TEC) | DC48V, Cooling capacity 200w, 300w |
4 | Fan | DC48V |
3. Detailed Picture
4. Cooing system

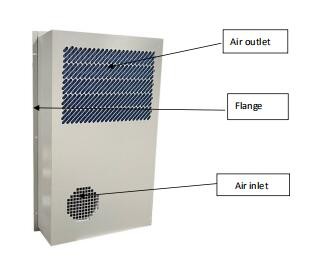

1500W 220VAC air conditioner installed on the front door
5. Power supply system
