Product Introduction
Thermoelectric cooler is a kind of cooling equipment consists of
Peltiel material. The inner sealed circuit is composed of the two
different metal leads, X and Y. When it is on power, heat on cool
end is transferred to hot end, which leads to the temperature drop
at cool end and temperature rise at hot end. The switch between hot
end and cool end can be completed by changing electrode.
Product Feature
- It adopts Peltiel material to realize electronic cooling.
Mini-shape and light.
- Without compressor and Freon. Environment-friendly, no vibration,
no leak.
- Using Environment-friendly materials, which meet RoHs requirements.
- No limitation about installation, it can be applied to many
occasions.
- Normal working ambient temperature is -20℃ to + 50℃.
- Using high density and thermal insulation foam to fill the cool end
and hot end of the cooling equipment.
- The temperature of Overheat protector of radiator at hot end is set
at +75℃±5℃.
- Applicable to the sealed, vibrating, and rotated occasions where
compressor cannot work.
Data Sheet
| DC voltage |
VDC |
-58 - -44 |
| power |
W |
312 |
| Cooling capacity |
W |
200 |
| Heating capacity |
W |
350 |
| installation |
/ | Door |
| Working temperature range |
℃ |
-40 - +55 |
| Ambient humidity |
RH |
5% - 95% |
| Protection grade |
/ |
IP 55 |
| Noise (dB) |
dB(A) |
63 |
| weight |
Kg |
10 |
Application
- Outdoor telecom cabinet
- Outdoor battery cabinet
- Electrical cabinet
- Industrial control cabinet
Data Sheet
Model | TEC-200 |
Cooling capacity(L35/L35) | 200W |
Voltage | DC48V |
Rated Power(L35/L35) | 312W |
Heat capacity | 350W |
Working temperature | -40～55℃ |
Noise | 63dB |
Weight | 10KGS |
IP Grade | IP55 |
Installation Drawing

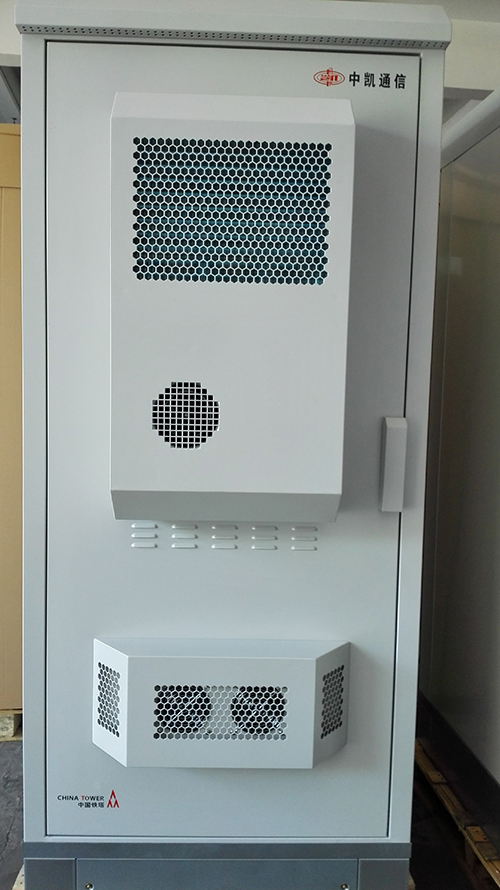

Product Application
Outdoor Telecommunication Cabinet is mainly used for wireless communication base station,
including the new generation of 4G system, communication
network/network integrated services, access/transmission switching
station, emergency communication/transmission, etc.
