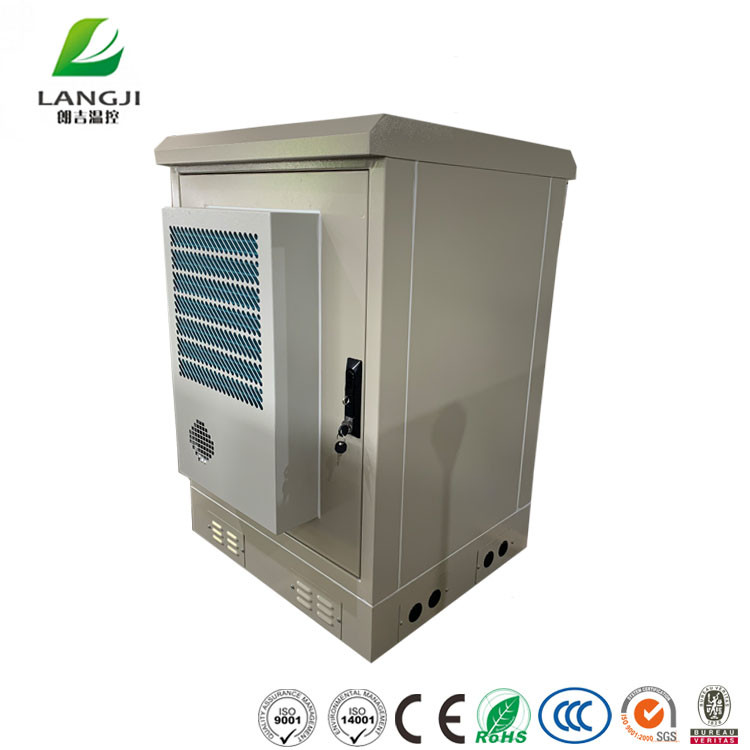

1500W IP55 19 ' Waterproof Power Enclosure Outdoor Battery Cabinet
Structure
External Dimension(W*D*H) : Standard 550mm*550mm*1200mm
Internal Capacity: 15U,18U,22U,24U,27U 30U,32U,35U,37U,40U,42U,44U
etc (based on customers requirements)
Layout : 2 compartments
Door :With two doors, with special lock for outdoor cabinet
(support padlock)
Hinge :Embedded
Material: Aluminumn
Material available: Galvanized iron/Aluminum/Stainless
steel/Cold-rolled steel etc(based on customers requirements)
Structure : welding 19 inch
Cable enter method :Bottom φ50*5 or customer requirement.
Color :RAL7035/Pantone428C, powder coating finish
Equipment Installation Method:19" rack
Ingress Protection: IP55
Noise Level :60-65dB
Temperature Control Cooling :DC48V fans
Lighting :LED lamp 48V LED lamps, it will turn on when the door is
opened; it will turn off when the door is closed.
Features
(1) The cabinet is dustproof, sunproof and rainproof, which is used
in outdoor environment. The protection level is IP55.
(2) Three cooling options for the cabinet: fans, heat exchanger or
air conditioner.
(3) -48V lamp is installed inside the cabinet.
(4) The cabinet is installed with Environment Monitoring Unit, door
alarm, temperature and humidity sensor, smoke sensor, water sensor
etc., which can work together to monitor the inside environment of
the cabinet.
(5) The layout of the cabinet is reasonable, which will facilitate
cable access, fixing and grounding. There’re entrance holes
individually for power cable, signal cable and optical cable.
(6) All the cables used in the cabinet are made from flame
retardant materials.
(7) The cabinet size can be custom made.
Advantages
(1) Flexible structure
Compartment type design
Flexible assembly
Two compartments / multiple compartments
(2) Fast deployed
Can be assembled, easy for transportation
Modular assembly, short installation time
Suitable for road side station and building top station. After
being fixed on the ground, the cabinet will start to work.
(3) Theft - proof
Inside installation, inside fixing, no outer screws
Anti-theft three point lock
Inside door hinges, multiple protection
Embedded cabinet door, theft proof
Accessory List(options) |
| No. | Item | Specifications |
| 1 | Fan | DC48V, START WORK AT 35°C |
| 2 | Power Distribution (PDU) | GRADE B LIGHTNING PROOF
AC INPUT: 63A/2P *1; AC OUTPUT: 16A/1P*4;
DC OUTPUT: 16A/1P*4 or customer requirement |
| 3 | Environment Monitoring Unit | 48VDCCommunication port: RS485, TCP/IP, SNMP optional |
| 4 | Door Sensor | Monitor door open status inside cabinet and provide real time
alarm. |
| 5 | Water Sensor | Monitor water status inside cabinet and provide real time alarm. |
| 6 | Tilt & Shock Sensor | Monitor shock status inside cabinet and provide real time alarm. |
| 7 | Temperature & Humidity Sensor | Monitor temperature and humidity inside cabinet and provide real
time alarm. |
| 8 | Smoke Sensor | Monitor smoke status inside cabinet and provide real time alarm. |
| 9 | Ground Bar | Resistance value: 0.021Ω |
| 10 | Built-in power supply | 150A/200A/300A |
| 11 | Packaging | Wooden case/Export pallet |
| Cooling System(Optional) |
| No. | Item | Specifications |
| 1 | Air Conditioner | AC220V/DC48V, Cooling capacity 300w, 400w, 600w, 800w, 1000w,
1200w, 1500w, 2000w, 2500w, 3000w, 3500w, 4000w; AC380V,5000w |
| 2 | Heat Exchanger | AC220V/DC48V, Heat transfer 80w/k, 100w/k, 120w/k, 150w/k, 200w/k |
| 3 | Thermoelectric Cooler (TEC) | DC48V, Cooling capacity 200w, 300w |
| 4 | Fan | DC48V |
