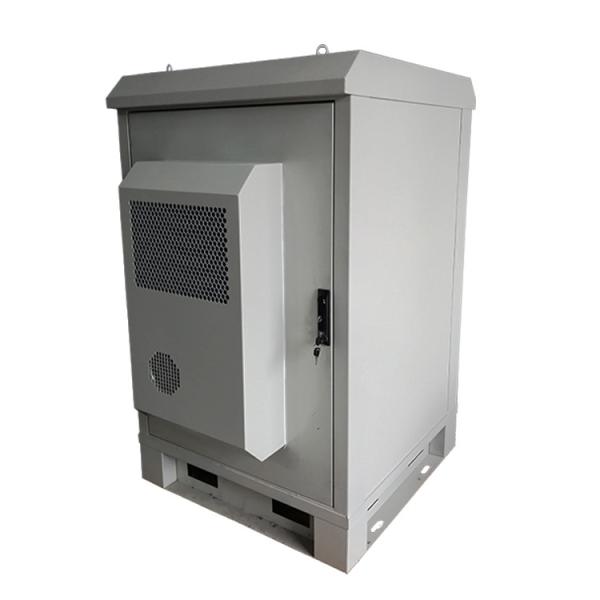

IP55 19" Outdoor Telecom Cabinet Enclosure Outdoor Network Cabinet
- Strong rack inside to be equipped with telecom equipments, power source, battery, temperature control device and other
attachments.
- Digital display the temperature-setting, temperature alarm, temperature parameters
inside and outside, and all kinds of other alarm information, etc.
- Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
- Can be installed in any difficult places include the top of mountain and the roof of buildings.
- Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.
- Supportcustom-made.
Accessory List(options) |
| No. | Item | Specifications |
| 1 | Fan | DC48V, START WORK AT 35°C |
| 2 | Power Distribution (PDU) | GRADE B LIGHTNING PROOF
AC INPUT: 63A/2P *1; AC OUTPUT: 16A/1P*4;
DC OUTPUT: 16A/1P*4 or customer requirement |
| 3 | Environment Monitoring Unit | 48VDCCommunication port: RS485, TCP/IP, SNMP optional |
| 4 | Door Sensor | Monitor door open status inside cabinet and provide real time
alarm. |
| 5 | Water Sensor | Monitor water status inside cabinet and provide real time alarm. |
| 6 | Tilt & Shock Sensor | Monitor shock status inside cabinet and provide real time alarm. |
| 7 | Temperature & Humidity Sensor | Monitor temperature and humidity inside cabinet and provide real
time alarm. |
| 8 | Smoke Sensor | Monitor smoke status inside cabinet and provide real time alarm. |
| 9 | Ground Bar | Resistance value: 0.021Ω |
| 10 | Built-in power supply | 150A/200A/300A |
| 11 | Packaging | Wooden case/Export pallet |
| Cooling System(Optional) |
| No. | Item | Specifications |
| 1 | Air Conditioner | AC220V/DC48V, Cooling capacity 300w, 400w, 600w, 800w, 1000w,
1200w, 1500w, 2000w, 2500w, 3000w, 3500w, 4000w; AC380V,5000w |
| 2 | Heat Exchanger | AC220V/DC48V, Heat transfer 80w/k, 100w/k, 120w/k, 150w/k, 200w/k |
| 3 | Thermoelectric Cooler (TEC) | DC48V, Cooling capacity 200w, 300w |
| 4 | Fan | DC48V |
Application
The Outdoor Telecom Cabinet is mainly used in wireless
communication base station:
(1) Access/transmission switching station
(2) Emergency communication/transmission
(3) 4G/5G system
(4) Communication/network integrated service

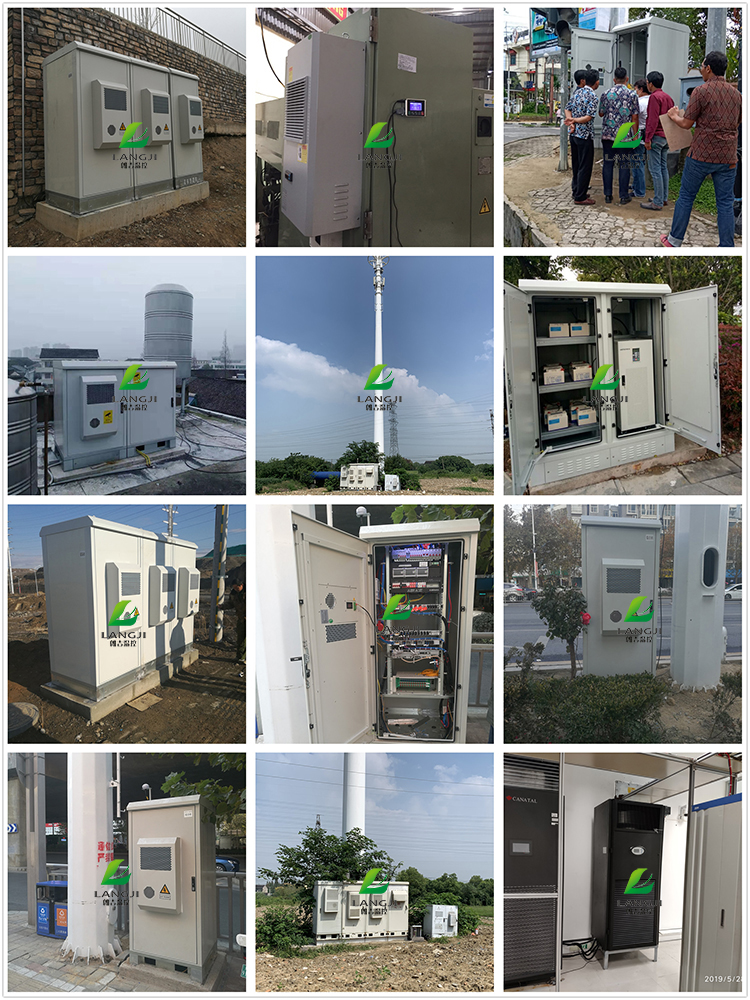

(5) The cabinet is suitable for outdoor environment, such as road
side, park, building roof, mountain area, flat ground, etc. The
cabinet can be installed with base station equipments, power supply
equipments, batteries, temperature control equipments, transmission
equipments and other equipments, or the cabinet can reserve
installation space and heat exchange capacity for the above
equipments, providing reliable mechanical and environmental
protection for normal operation of the internal equipments.
Q1.Do you have any MOQ limit for air conditioner?
A: Low MOQ, 1pc for sample checking is available.
Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before
shipment.
Q3.Are your products can be customized?
A: Yes,We can customize products according to customer needs.
Q4.Do you offer guarantee for the products?
A: Yes,we offer 1 year warranty for our products. If any problem
happen in warranty period, we will reply your technical questions
in 24 hours, and remote video support is available.
Q5: Where the application?
A: Our products have been widely used in many industries, like data
processing, indoor/outdoor telecommunications, base station, steel,
metallurgy, petrification, cars and war industry etc.
