Factory supply waterproof outdoor telecom solar battery storage power supply cabinet

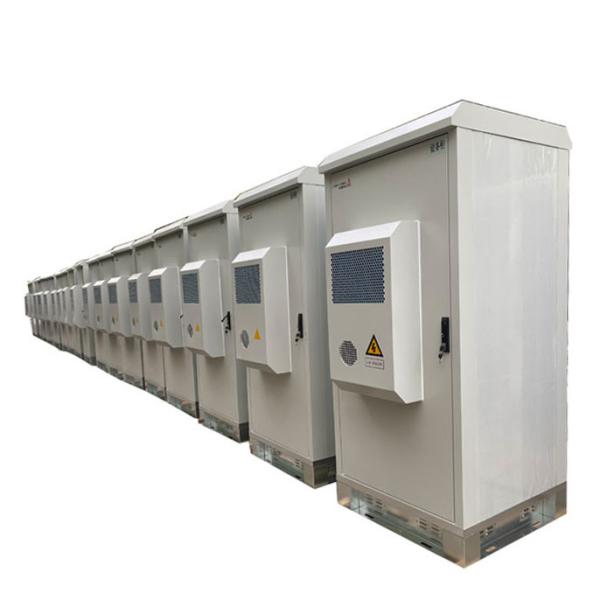

The cabinet, made of galvanized steel, is a double wall cabinet with heat insulation between the two walls,which can keep the temperature inside the cabinet. The cabinet also has roofs which is sun proof and water proof.

The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock. There’s open door alarm sensor, which works together with the environment monitoring unit.

Technical Data Sheet

1.1 Structure
External Dimension(H*W*D) : Standard 900mm*1150mm*2100mm or any customized size

1.2 Material:Materials are Galvanization plate with 45mm thickness EPS insulation

1.3 Layout :4 Layers battery compartment

1.4 Door :two doors, 4 point security lock outdoor cabinet (support padlock)

1.5 Cable enter method :Bottom φ50*5 or customer requirement.

1.6 Temperature Control Cooling :600W 48VDC air conditioner

1.7 way of communication:RS485

1.8.working temperature:-40℃~+55℃

Available dimension and material

Width available:600mm,650mm,700mm,750mm,800mm,850mm,900mm or any customized size
Depth available:600mm,650mm,700mm,750mm,800mm,850mm,900mm,950mm,1000mm or any customized size
Height: 1000mm.1400mm 1600mm 2000mm etc (based on customers requirements)

Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)

Detailed Picture

Company profile

Related Product

Suzhou Langji Technology Co., Ltd. was founded in 2009, it is a high-tech enterprise with R&D, manufacturing and sales department. It is located at the coast of Taihu Lake Suzhou city, the registered capital is 50 million RMB. The whole factory covers 5000 square meters and employs about 200 people with an annual sale of nearly 100 million RMB.

Langji company provides full range of temperature control products and solutions for
- Telecommunication

- Data Center
- Base station

- Solar based installations

- Wireless cell sides & switches
- Industry Automation
- Energy Storage

Suzhou Langji Technology Co., Ltd. is always taking the concept of "well-grounded, ambitious and make all efforts to create national brand of precision air conditioner", holding 3 point management strategy that includes technique, force, and service, tracking the market trend and focusing on the development of products. Based on strong technical force, and advanced design ideas, Langji has promoted many models of precision air condition, heat exchanger, and energy-saving products for base station or equipment room, outdoor communication equipment cabinet and thermostatical battery cabinet etc. to meet the diversified needs of the domestic and overseas customers.

Suzhou Langji Technology Co., Ltd. manages the company and production scientifically according to ISO9001 and ISO14001 international management system. The products are certified by CE and CCC, with stable and reliable quality, Langji products are sold in many countries and regions including China, India, Russia, the Middle East, South-east Asia, South America, Africa, Europe and the USA.
