Manufacturer 16U IP45 IP55 IP65 Outdoor Computer Enclosure Wall
Mounted Cabinet 19 Inch Outdoor enclosure
Suzhou Langji Technology Co., Ltd. was founded in 2009, it is a
high-tech enterprise with R&D, manufacturing and sales
department. It is located at the coast of Taihu Lake Suzhou city,
the registered capital is 50 million RMB. The whole factory covers
5000 square meters and employs about 200 people with an annual sale
of nearly 100 million RMB.
1. Technical Data Sheet
1.1 Structure
Internal Dimension(H*W*D) :Standard 16U *600*600mm or any
customized size
External Dimension(H*W*D) : Standard 850*650*650mm or any
customized size
1.2 Material:Galvanized steel
1.3 Layout : one compartment equipment cabinet
1.4 Door : one door with 3 point security lock for outdoor cabinet (support
padlock)
1.5 Cable enter method :Bottom φ50*5 or customer requirement.
1.6 Temperature Control Cooling :48VDC high speed Fan
2. Available dimension and material
Width available:300mm,350mm,400mm,450mm,500mm,550mm,600mm or any customized size
Depth available:300mm,350mm,400mm,450mm,500mm,550mm,600mm or any customized size
Internal capacity: 6U,9U ,10U,12U,14U,16U,18U,20U, etc (based on customers
requirements)
Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel
etc(based on customers requirements)
Accessory List(options) |
| No. | Item | Specifications |
| 1 | Fan | DC48V, START WORK AT 35°C |
| 2 | Power Distribution (PDU) | GRADE B LIGHTNING PROOF
AC INPUT: 63A/2P *1; AC OUTPUT: 16A/1P*4;
DC OUTPUT: 16A/1P*4 or customer requirement |
| 3 | Environment Monitoring Unit | 48VDCCommunication port: RS485, TCP/IP, SNMP optional |
| 4 | Door Sensor | Monitor door open status inside cabinet and provide real time
alarm. |
| 5 | Water Sensor | Monitor water status inside cabinet and provide real time alarm. |
| 6 | Tilt & Shock Sensor | Monitor shock status inside cabinet and provide real time alarm. |
| 7 | Temperature & Humidity Sensor | Monitor temperature and humidity inside cabinet and provide real
time alarm. |
| 8 | Smoke Sensor | Monitor smoke status inside cabinet and provide real time alarm. |
| 9 | Ground Bar | Resistance value: 0.021Ω |
| 10 | Built-in power supply | 150A/200A/300A |
| 11 | Packaging | Wooden case/Export pallet |
| Cooling System(Optional) |
| No. | Item | Specifications |
| 1 | Air Conditioner | AC220V/DC48V, Cooling capacity 300w, 400w, 600w, 800w, 1000w,
1200w, 1500w, 2000w, 2500w, 3000w, 3500w, 4000w; AC380V,5000w |
| 2 | Heat Exchanger | AC220V/DC48V, Heat transfer 80w/k, 100w/k, 120w/k, 150w/k, 200w/k |
| 3 | Thermoelectric Cooler (TEC) | DC48V, Cooling capacity 200w, 300w |
| 4 | Fan | DC48V |
3. Detailed Picture

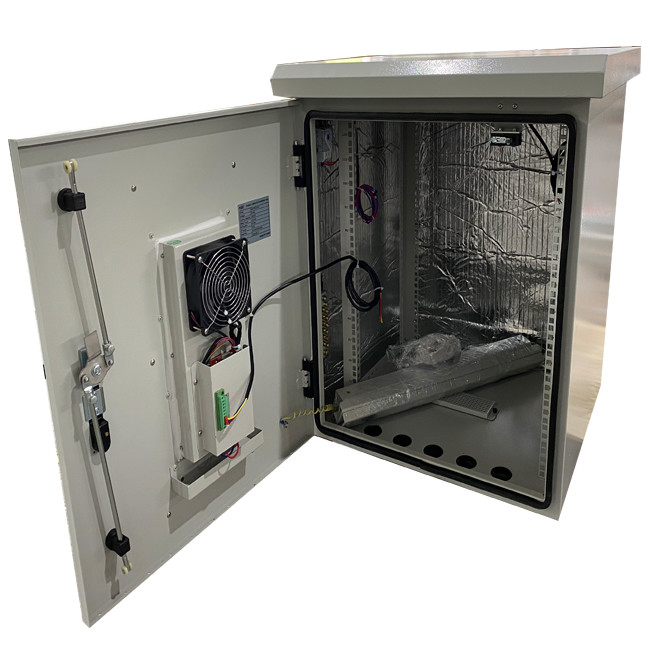

1. Optional Cable Entry on Top & Bottom, Removable Front&Rear
Door and Side Panel Facility, Ventilation and Rat-Prevention on the
Bottom.
2. Varies Optional Accessories, Reliable Quality.
3. Optional Opening Hole and Varies Specification upon Customers
Special Requirements.
4. Degreasing, Pickling, Phosphoric, Power Coated surface finish.
5. High Quality SPCC Cold Rolled Steel.
4. Company profile
Langji Technology Co., Ltd. was founded in 2009, it is a high-tech
enterprise with R&D, manufacturing and sales department. It is
ocated at the coast of Taihu Lake Suzhou city, the registered
capital is 50 million RMB. The whole factory covers 5000 square
meters and employs about 200 people with an annual sale of nearly
100 million RMB.
Langji company provides full range of temperature control products
and solutions for
- Telecommunication
- Data Center
- Base station
- Solar based installations
- Wireless cell sides & switches
- Industry Automation
- Energy Storage
Suzhou Langji Technology Co., Ltd. manages the company and
production scientifically according to ISO9001 and ISO14001
international management system. The products are certified by CE
and CCC, with stable and reliable quality, Langji products are sold
in many countries and regions including China, India, Russia, the
Middle East, South-east Asia, South America, Africa, Europe and the
USA.
5. Pantents
6. Packaging
